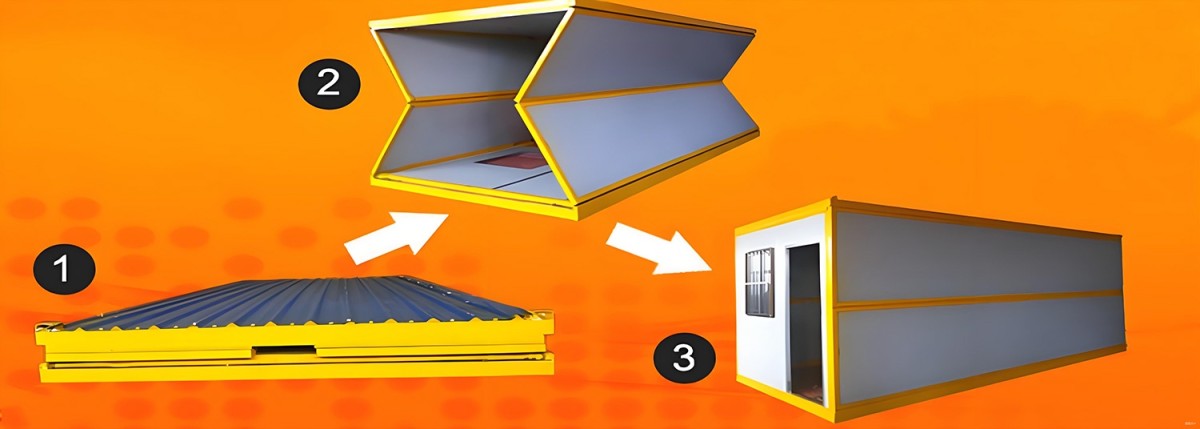

The Foldable Container House is a highly efficient modular building solution designed for easy transportation and rapid installation.The structure can be folded to significantly reduce its volume during transportation. After folding, the size is reduced to approximately one-quarter of the original volume, which greatly improves transportation efficiency.
+86 18868695469
+86 15988633399
perryzhiya@gmail.com
Product Introduction
Product Parameters
Installation Steps
Live Demonstration

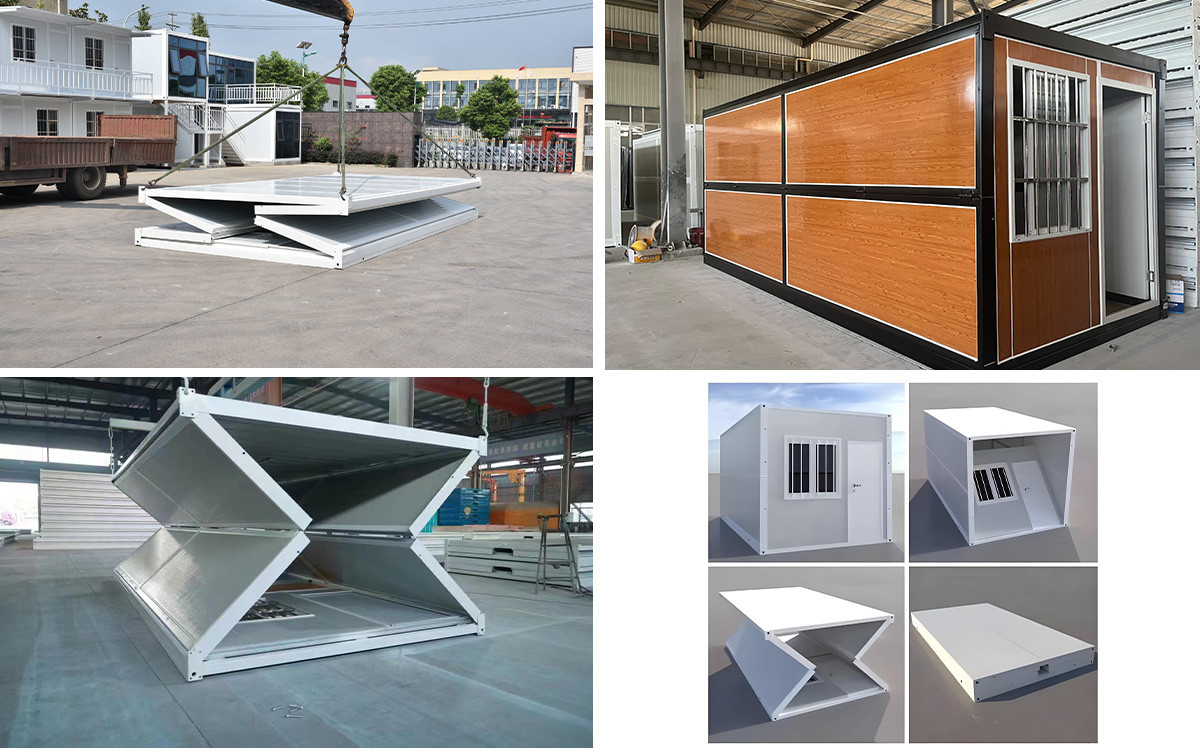

The Foldable Container House is a highly efficient modular building solution designed for easy transportation and rapid installation.The structure can be folded to significantly reduce its volume during transportation. After folding, the size is reduced to approximately one-quarter of the original volume, which greatly improves transportation efficiency.When folded, the height of the container house is only 45 cm, allowing more units to be loaded in a single shipment. A 17.5-meter truck can transport up to 20 units, significantly reducing logistics costs.The product features quick deployment and easy retraction, offering excellent flexibility and convenience.It is widely used as temporary dormitories on construction sites, exhibition spaces, temporary offices, and other modular building applications.

X-Type Foldable Container House

No.ItemDetailed DescriptionSpecificationQuantityUnit
1型式一
(Form 1)
标准箱
(Standard container)
外部尺寸:2500mm(宽)*5800mm(长)*2430m(高)
内部尺寸:2370mm(宽)*5635mm(长)*2265mm(高)
折叠尺寸:2500mm(宽)*5800mm(长)*390mm (高)
40尺高柜: 10套
1套
2框架
(Frame)
顶主梁
(Top girder)
异形型钢镀锌凹凸管63mm*80mm*1.1mm
Special shaped steel galvanized concave convex
pipe 63mm*80mm*1.1mm
2组
3底主梁
(Bottom girder)
镀锌方管50mm*100mm*1.1
Galvanized square pipe 40mm*60mm*1.1mm
2根
4异形型钢镀锌凹凸管63mm*80mm*1.1mm
Special shaped steel galvanized concave convex
pipe 63mm*80mm*1.1mm
2组
5顶部横梁
(Top beam)
镀锌方管50mm*50mm*1.5mm
Galvanized square pipe 50mm*50mm*1.5mm
3根
6顶部次横梁
(Top sub-beam)
镀锌方管30mm*50mm*1.1mm
Galvanized square pipe 30mm*50mm*1.1mm
3根
7前后端主梁(上侧)
(Upper side of front and rear main
beam)
镀锌方管60mm*60mm*1.1mm
Galvanized square pipe 60mm*60mm*1.1mm
2根
8前后端主梁(下侧)
(Lower side of front and rear main
beam)
异形型钢镀锌凹凸管63mm*80mm*1.1mm
Special shaped steel galvanized concave convex
pipe 63mm*80mm*1.1mm
2组
9侧墙框架
(Sidewall frame)
异形型钢镀锌凹凸管63mm*80mm*1.1
Special shaped steel galvanized concave convex
pipe 63mm*80mm*1.1
2组
10底部横梁
(Bottom crossbeam)
镀锌方钢管40mm*80mm*1.0mm
Galvanized square steel pipe 40mm*40mm*1.0mm
14根
11前后墙折件立柱
Column
镀锌钢管折件 120mm*55mm*1.8mm
Galvanized steel pipe 120mm*55mm*1.8mm
4根
12侧墙中间折件立柱
Side wall column
镀锌钢u型卡槽折件 150mm*62mm*1.5mm
Galvanized steel pipe with U-shaped groove
150mm*62mm*1.5mm
2组
13顶部吊头钢板180mm*100mm*15mm
Steel plate(180mm*100mm*15mm)
4块
14底部吊头钢板210mm*100mm*15mm
Steel plate(210mm*100mm*15mm)
4块
15304不锈钢合页
(304 stainless steel hinge)
高强度镀锌合页85mm*115mm*3mm(轴柱304不锈钢)
High-strength galvanized hinge85mm*115mm*3mm
(Shaft column304stainless steel)
36个
16整体框架保护涂料
(Integral frame protective coating)
塑粉
Cabaret high gloss enamel
1套
17- 屋顶
(Top of
container)
外部顶板
(External roof)
1040型彩钢瓦(0.38mm)
1040 color steel tile(0.38mm)
6张
18内部吊顶
(Internal ceiling)
831型吊顶瓦(0.17mm)
831 ceiling tile(0.17mm)
7张
19隔热玻璃丝绵
(Insulation glass wool)
容重60kg/m³厚度30mm
Bulk density 60kg/m³*14.5square
14.5㎡
20- 地面
(Floor)
玻镁地板(MGO floor)厚度15mm
15mm Thickness
5张
21- 墙
(Wallboard)
(墙板可定制)
保温隔热岩棉彩钢复合夹芯板(侧墙)
Heat insulation rock wool color steel
composite sandwich panel (side wall)
0.17mm彩钢板/50mm/60kg/m3岩棉
0.17mm color steel plate / 50mm / 60kg / m3 rock
wool
8块
22保温隔热岩棉彩钢复合夹芯板(前后墙)
Heat insulation rock wool color steel
composite sandwich panel (Front and
rear walls)
0.17mm彩钢板/50mm/60kg/m3岩棉
0.17mm color steel plate / 50mm / 60kg / m³ rock
wool
6块
23-窗
(Window)
铝合金防盗管一体窗
PVC-coated steel double-glazed
windows
970mm*1215mm带纱窗
970mm*1215mm (With screen window)
2樘
24- 门
(Door)
集装箱专用钢制防盗门
container special steel anti-theft
door
970mm*1970mm1樘
25- 电气系统
(Electrical
system)
电路保护器
(circuit protector)

1个
26标准插座
(Standard socket)

2个
27单管LED灯 60W
(Single tube LED light 60W)

1个
28空调专用插座
(Special socket for air
conditioner)

1个
29灯开关
(Light switch)

1个
